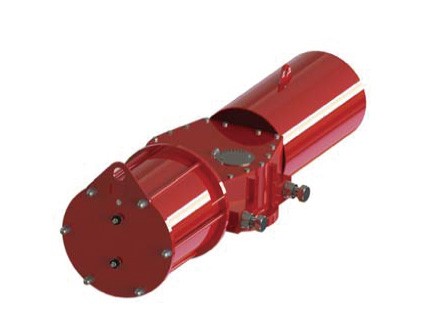

结构特征

structure  character

双活塞推动，齿条齿轮传动，结构紧凑，装配位置对称，动作迅速，通过简单的活塞颠倒可以改变输出轴转向。角行程输出：0°-90°。

Dual-piston driven.toothed bar and gear driven,structure is compact，position of assembly is symmetrical. Motion is swift.turning of output axis can be changed through simple reversal of piston.Output of angle travel:0°-90°.

气缸体body

挤压铝合金缸体或铸钢。表面进行阳极氧化处理，大大提高了硬度和耐腐蚀性。气缸内表面经精细珩磨加工，摩擦系数低，使用寿命长。

Extruded aluminum alloy cylinder body or cast steel,The surface is treated by anticathode oxidation which greatly improves the rigidity and anti-corrosion.The intenal surface of cylinder is honed and processed so that the friction coefficient is low and  the service life is long.

缸  盖End-Cap

压铸铝合金LY112，环氧粉末涂层；Die-casting alluminum LY112

活  塞Piston

压铸铝合金LY112。Die-casting alluminum LY112

轴承Bearing

输出轴，活塞选择了高质量的轴承，稳定性好，密封性好，摩擦系数低，适用温度范围大，使用寿命长。

The output axis and the piston have chosen hign quality bearings which have good stability and sealing,low friction coefficient.large range of applicable temperature and long service life.

O型密封圈

O seal ring

普通型：丁晴耐油橡胶。高温，低温的应用场合，使用氟橡胶和硅橡胶。使用相应的润滑剂。

Common type:nitrile butadiene oil resistant rubber. Fluorelastomer and silicon rubber are used in appli-cable situation of high and low temperature.Use relevant lubricant.

齿轮轴Pinion

镀镍合金钢、不锈钢Alloy steel

导向带piston bearing

PTFE青铜复合材料PTFE and bronze mix material

活塞衬瓦

Guide Piston

增强尼龙nylon

预压缩弹簧

Preloaded spring

采用高性能弹簧钢丝，弹簧动作寿命达20万次以上

Spring steel,Times Of spring action reach 200000.
